CSK30-2RS CSK30P-2RS CSK30PP-2RS 30*62*21MM Sprag Type One Way Clutch Bearings

  • 1
  • 2
  • 3

Brand Name : SUMA

Model Number : CSK30-2RS CSK30P-2RS CSK30PP-2RS

Certification : ISO

Place of Origin : CHINA

MOQ : 5pcs

Price : USD5-USD7PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 20000PCS PER WEEK

Delivery Time : 2-3 Days

Packaging Details : White Box + Carton Box + Wooden Pallet

Material : GCr15 Bearing Steel

Torque Capacity : 138Nm

Rotation Speed : 4200 RPM

Drag Torque : 7.5Ncm

Unit Weight : 0.27KG

Package : White box + Carton Box

OEM : Accept

MOQ : 5-

Contact Now

CSK30-2RS CSK30P-2RS CSK30PP-2RS 30*62*21MM Sprag Type One Way Clutch Bearings

Fearures

Types CSK and CSK...2RS are sprag type freewheels integrated into 62.. series ball bearings (except size 40).

They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm.

Model Number CSK30-2RS
Bearing Series N/A
Bore(in.) 1.180
Keyway in Bore(in.) None
Keyway on Outer Race None
Lubrication Type GREASE
Torque Capacity(lb.ft.) 102
Maximum Inner Race Overrunning Speed(rpm) 4200
Maximum Outer Race Overrunning Speed(rpm) 4200
Ball Bearing Rating Dynamic(lbs.) 2632.5
Ball Bearing Rating Static(lbs.) 1451.25
Roller Bearing Rating Dynamic(lbs.) N/A
Roller Bearing Rating Static(lbs.) N/A
Resistance After Run-in (lb.in.) 6.64
Shipping Weight (lbs.) 0.60

Dimensions and Capacities

CSK30-2RS CSK30P-2RS CSK30PP-2RS 30*62*21MM Sprag Type One Way Clutch Bearings

Type Size Bearing series DIMENSION Bearing loads Weight Drag torque
dynamic static
CSK..P d TKN1) nmax D L b t C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 10 3 15.54 12.25 0.5 7
CSK..P-2RS 12 – 9.3 10000 32 14 6.1 2.77 0.05 3
15 – 17 8400 35 16 7.4 3.42 0.07 4
17 – 30 7350 40 17 7.9 3.8 0.09 5.6
20 – 50 6000 47 19 9.4 4.46 0.145 6
25 – 85 5200 52 20 10.7 5.46 0.175 6
30 – 138 4200 62 21 11.7 6.45 0.27 7.5
35 – 175 3600 72 22 12.6 7.28 0.4 8.2
40 – 325 3000 80 27 15.54 12.25 0.6 10
Mounting and Coupling

CSK30-2RS CSK30P-2RS CSK30PP-2RS 30*62*21MM Sprag Type One Way Clutch Bearings

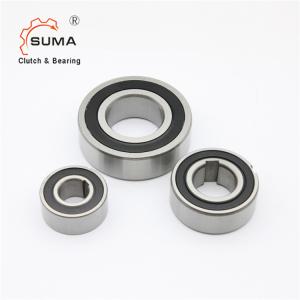

PRODUCT PICTURE
CSK30-2RS CSK30P-2RS CSK30PP-2RS 30*62*21MM Sprag Type One Way Clutch Bearings
CSK30-2RS CSK30P-2RS CSK30PP-2RS 30*62*21MM Sprag Type One Way Clutch Bearings
CSK30-2RS CSK30P-2RS CSK30PP-2RS 30*62*21MM Sprag Type One Way Clutch Bearings
CSK30-2RS CSK30P-2RS CSK30PP-2RS 30*62*21MM Sprag Type One Way Clutch Bearings

Q: How do you pack the goods?

  • Small Quantity :

Each in White Box - in 19x18x9CM carton box - 29*28*19CM carton box

  • Big Quantity : 29*28*19cm carton box + Wooden box /Wooden pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
