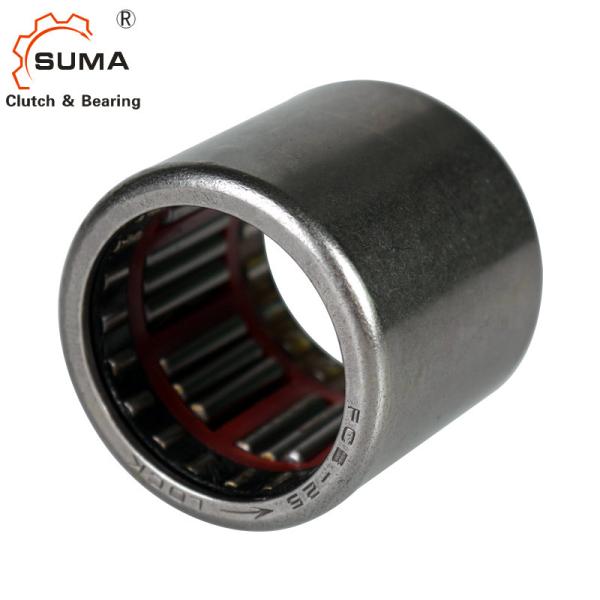

FCB25 Three Row Red Cage Drawn Cup One Way Needle Clutch

  • 1
  • 2
  • 3

Brand Name : SUMA

Model Number : FCB25

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 10

Price : USD0.5-USD1PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000PCS Per Month

Delivery Time : 2Days

Packaging Details : Carton Box

Contact Now

FCB25 Three Row Red Cage Drawn Cup One Way Needle Clutch

Technical Datas

Item:FC FCB Drawn Cup One Way Needle Clutch
Material: ST14 / Stainless Steel
Inner Bore Range:4-42mm
Outer Bore Range:8-42mm
Height Range:6-30mm
Torque Range:0.34-121Nm
Package:Roll pack + Carton Box

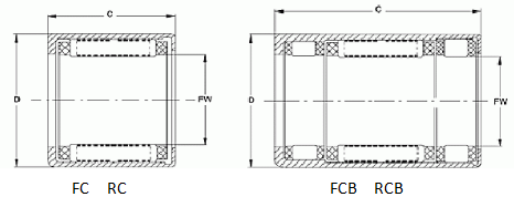

Dimensions and Capacities

FC, FCB RC, RCB
Bearing Mass Approx

Designation

 Bearing Designation Mass Approx

Designation
Fw D C Torgue Fw D C Torgue
g mm Nm g mm Nm
FC4K 1 4 8 6 0.34 RC040708 3.5 6.35 11.112 12.7 1.9
FC6 3 6 10 12 1.76 RC040708-FS 3.5 6.35 11.112 12.7 1.9
FC6K 3 6 10 12 1.76 RC061008 4.7 9.525 15.875 12.7 4.83
FC8 4 8 14 12 5.3 RC061008-FC 4.7 9.525 15.875 12.7 4.83
FCL8K 3.5 8 12 12 5 RC081208 9.2 12.7 19.05 12.7 7.9
FC10 4.8 10 16 12 6 RC081208-FS 9.2 12.7 19.05 12.7 7.9
FCL10K 4 10 14 12 5.3 RC101410 14.5 15.875 22.225 15.88 15.4
FC12 11 12 18 16 12.2 RC101410-FC 14.5 15.875 22.225 15.88 15.4
FC14K 13 14 20 16 17.3 RC121610 17 19.05 25.4 15.88 20.9
FC16 14 16 22 16 20.5 RC121610-FS 17 19.05 25.4 15.88 20.9
FC20 17 20 26 16 28.5 RC162110 16.2 25.4 33.338 15.88 45
FC25 30 25 32 20 66 RC162110-FC 16.2 25.4 33.338 15.88 45
FC30 36 30 37 20 90 RCB061014 12 9.525 15.875 22.22 4.83
FC35 40 35 42 20 121 RCB061014-FS 12 9.525 15.875 22.22 4.83
FCB8 10 14 14 20 5 RCB081214 16 12.7 19.05 22.22 7.9
FCB10 15 16 16 20 10 RCB081214-FC 16 12.7 19.05 22.22 7.9
FCB12 18 18 18 26 12.2 RCB101416 21.3 15.875 22.225 25.4 15.4
FCB16 22 22 22 26 20.5 RCB101416-FS 21.3 15.875 22.225 25.4 15.4
FCB20 27 26 26 26 28.5 RCB121616 26.5 19.05 25.4 25.4 20.9
FCB25 44 32 32 30 66 RCB121616-FC 26.5 19.05 25.4 25.4 20.9
FCB30 51 37 37 30 90 RCB162117 44.8 25.4 33.338 26.99 45
FCB35 58 42 42 30 121 RCB162117-FS 44.8 25.4 33.338 26.99 45
FCB25 Three Row Red Cage Drawn Cup One Way Needle Clutch

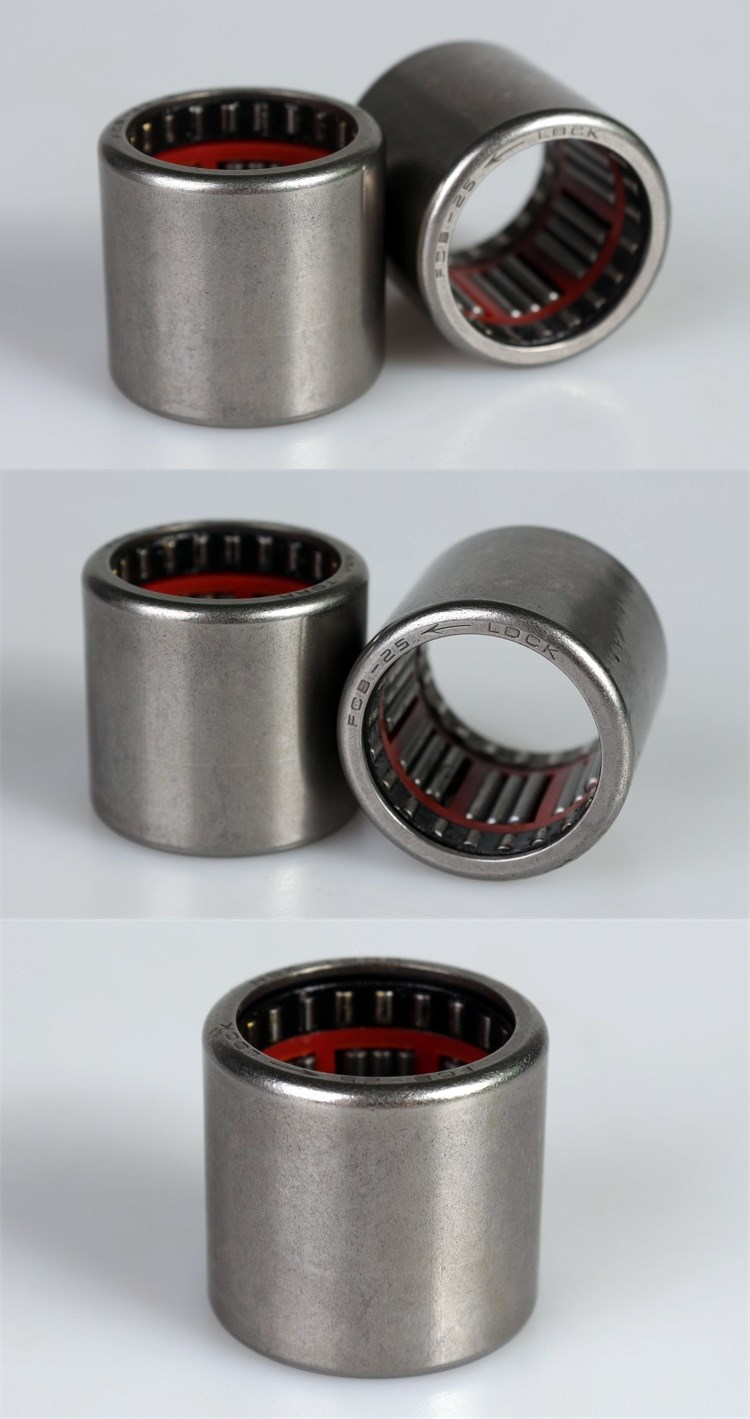

Pictures
FCB25 Three Row Red Cage Drawn Cup One Way Needle Clutch
Changzhou Suma Drawn Cup One Way needle clutch offer the best in friction management.
They're machined and ground from premium materials to present high-strength and long-lasting service in your project.
Hundreds of needle bearing options are available for fitment on countless vehicles.
Choose top-quality One Way Needle Bearings from a name you can trust— CHANGZHOU SUMA .
FCB25 Three Row Red Cage Drawn Cup One Way Needle Clutch
