GVG Series Sprag Type One Way Clutch Freewheel Backstop GVG50 GVG60 GVG70

  • 1
  • 2
  • 3

Brand Name : SUMA

Model Number : GVG50 GVG60 GVG70

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD90-USD110 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000PCS Per Month

Delivery Time : 7-10 Days

Packaging Details : Carton Box

Product Name : Backstop Clutch GVG50 GVG60 GVG70

Material : GCr15 Bearing Steel

Torque Capacity : 2180Nm

Rotation Speed : 300RPM

Unit Weight : 5.8Kg

Warranty : 1 Year

Size : 45*155*54 mm / 50*155*54mm

OEM : Accept

Contact Now

GVG Series Sprag Type One Way Clutch Freewheel Backstop GVG50 GVG60 GVG70​


Features

GVG series freewheels backstop are with sprags cages, centering between the inner race and outer race is carried out by means of bushes.

the torque forces are transmitted from the shaft to the inner race by means of a key.

Shaft tolerance must be h6 .

When the freewheel backstop is used as a non return device, the lever fixed to the outer race must be sandwiched between two brackets; otherwise a pin must be inserted in the looped hole.

When freewheel backstop locked to the frame of a machine, it stops the freewheel rotating the bushes, the lever must be given a certain amount of clearance to allow for the axial movement.

the freewheel backstop is supplied already greased .

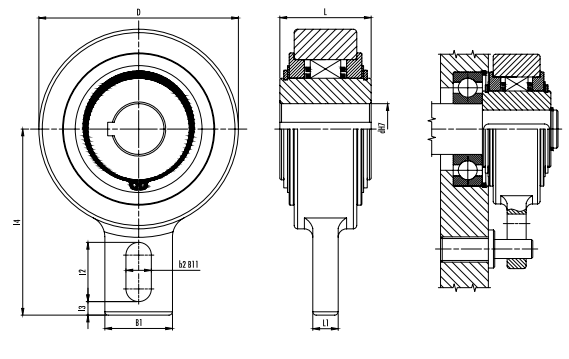

Dimensions and Capacities

GVG Series Sprag Type One Way Clutch Freewheel Backstop GVG50 GVG60 GVG70

Model

dH7

mm

D

mm

L

mm

B1

mm

L1

mm

b2

mm

I2

mm

I3

mm

I4

mm

Weight

kg

 Max Speed

Torque

Nm
GVG20 20 106 48 40 15 18 35 10.5 113 2.5 400 606
GVG25 25 106 48 40 15 18 35 10.5 113 2.4 400 606
GVG30 30 106 48 40 15 18 35 10.5 113 2.3 400 606
GVG35 35 106 48 40 15 18 35 10.5 125 2.2 400 606
GVG40 40 132 52 60 15 18 35 10 125 4 300 1295
GVG45 45 132 52 60 15 18 35 10 125 3.8 300 1295
GVG50 50 132 52 60 15 18 35 10 125 3.7 300 1295
GVG55 55 132 52 60 15 18 35 10 125 3.5 300 1295
GVG60 60 161 54 70 15 18 35 10 140 6.1 250 2550
GVG70 70 161 54 70 15 18 35 10 140 5.7 250 2550
GVG80 80 190 70 70 20 25 45 15 165 10.2 200 4875
GVG90 90 190 70 70 20 25 45 15 165 9.6 200 4875

1)Tmax: 2x Tn

Kyey DIN 6885

2)Maximum allowed speed

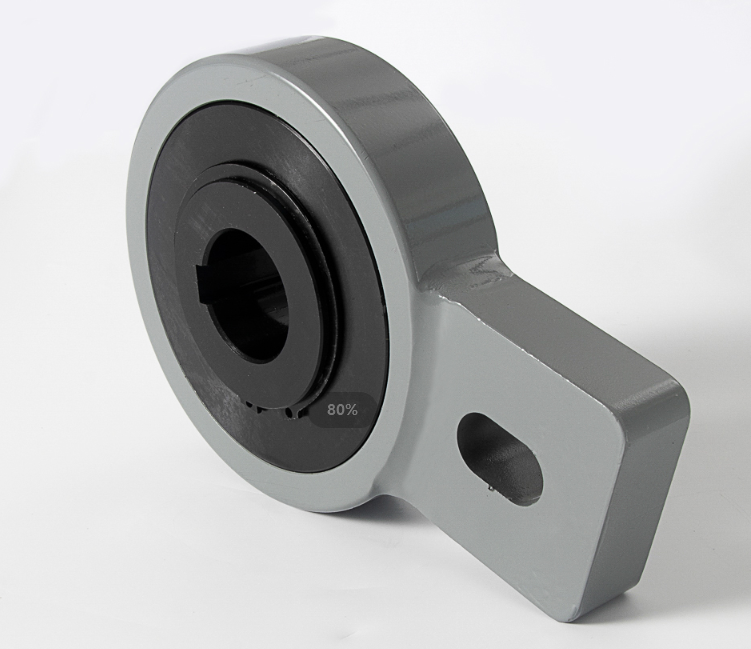

Pictures
GVG Series Sprag Type One Way Clutch Freewheel Backstop GVG50 GVG60 GVG70
