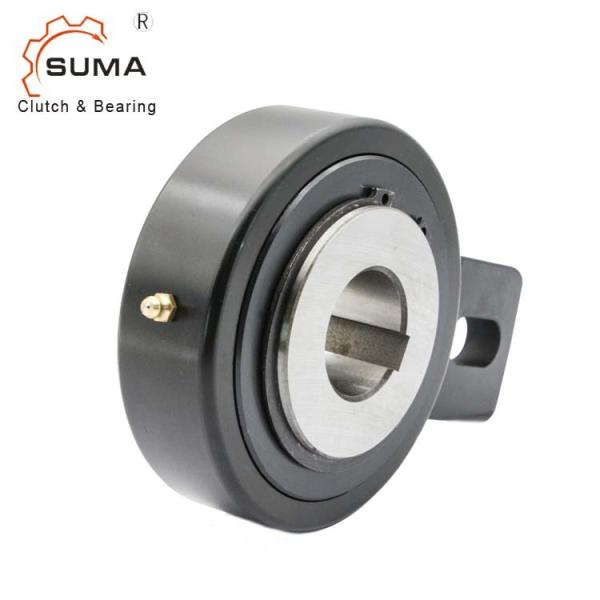

GV45 GV50 Backstop Clutch Roller Type One Way Bearings

Name: GV45 GV50 Backstop Clutch Roller Type One Way Bearings
Brand: SUMA
Price: 120 USD

Quality GV45 GV50 Backstop Clutch Roller Type One Way Bearings wholesale

Brand Name : SUMA

Model Number : GV45 GV50

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD120-USD150 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 7-10 Days

Packaging Details : Carton Box

Product Name : Backstop Clutch GV45 GV50

Material : GCr15 Bearing Steel

Torque Capacity : 2180Nm

Rotation Speed : 300RPM

Unit Weight : 5.8Kg

Warranty : 1 Year

Size : 45*155*54 mm / 50*155*54mm

OEM : Accept

Contact Now

GV45 GV50 Backstop Clutch Roller Type One Way Bearings

Features

GV series freewheels are with rollers, centering between the inner race and outer race is carried out by means of bushes.

the torque forces are transmitted from the shaft to the inner race by means of a key.

shaft tolerance must be h6.

When the freewheel is used as a non return device, the lever fixed to the outer race must be sandwiched between two brackets; otherwise a pin must be inserted

in the looped hole. When locked to the frame of a machine, it stops the freewheel rotating.

If the freewheel is used as an intermittent feed, the lever must be attached lengthways using the hole for a pushrod or similar. In any case, to avoid overloading

the bushes, the lever must be given a certain amount of clearance to allow for the axial movement.

the freewheel is supplied already greased

Dimensions and Capacities

GV45 GV50 Backstop Clutch Roller Type One Way Bearings

Model	dH7 mm	D mm	L mm	B₁ mm	L₁ mm	b₂ mm	I₂ mm	I₃ mm	I₄ mm	Weight Kg	Max Speed	Torque Nm	Drag Torque Nm
GV20	20	83	35	40	12	15	35	5	90	1.3	450	275	0.2
GV25	25	83	35	40	12	15	35	5	90	1.3	450	275	0.2
GV30	30	118	54	40	15	15	35	8	110	3.5	320	1250	1.2
GV35	35	118	54	40	15	15	35	8	110	3.4	320	1250	1.2
GV40	40	118	54	40	15	15	35	8	140	3.3	320	2180	1.2
GV45	45	155	54	80	15	18	35	10	140	5.8	300	2180	2.2
GV50	50	155	54	80	15	18	35	10	140	5.7	300	2180	2.2
GV55	55	155	54	80	15	18	35	10	140	5.6	300	2180	2.2
GV60	60	155	54	80	15	18	35	10	140	5.5	300	2180	2.2
GV70	70	155	54	80	15	18	35	10	140	5.3	300	2180	2.2
GV80	80	190	64	80	20	20	40	10	155	8.7	200	2930	3.5
GV90*	90	260	90	120	25	30	50	20	220	24.5	150	7250	3.5
GV100*	100	260	90	120	25	30	50	20	220	23.5	150	7250	3.5
GV110*	110	260	90	120	25	30	50	20	220	22.5	150	7250	3.5
GV120*	120	300	110	120	30	30	50	20	240	42	130	11100	6.0

1)Tmax: 2x Tn

Kyey DIN 6885

2)Maximum allowed speed
