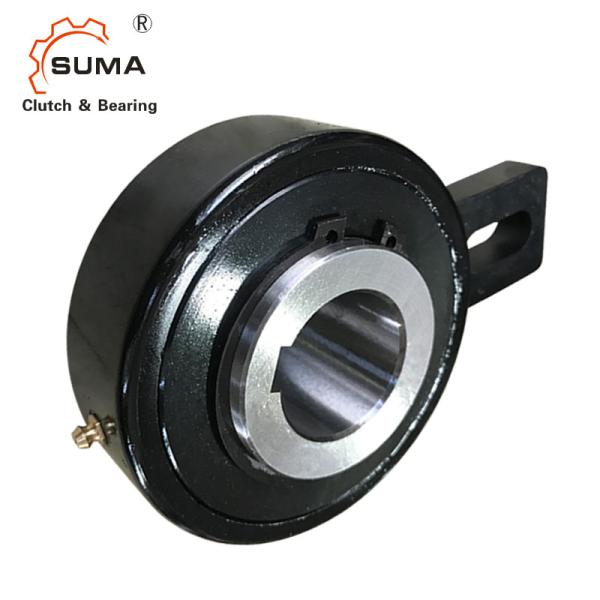

AV30 AV35 AV40 Bucket Elevator Backstop Clutch Bearing One Way

  • 1
  • 2
  • 3

Brand Name : SUMA

Model Number : AV30 AV35 AV40

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD110-USD140 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 7-10 Days

Packaging Details : Carton Box

Product Name : Bearing One Way

Material : GCr15 Bearing Steel

Torque Capacity : 1200Nm

Rotation Speed : 320RPM

Unit Weight : 3.5Kg

Warranty : 1 Year

Size : 30/35/40*118*54mm

OEM : Accept

Contact Now

AV30 AV35 AV40 Bucket Elevator Backstop Clutch Bearing One Way

Features

Type AV is a roller type freewheel. It is self-contained, centered by plain bearings for low rotational speeds , and sealed using shield protected metallic labyrinth seals.

Unit is delivered grease lubricated, ready to install in a horizontal or vertical position.

Primarily used as a backstop, the torque capacity is high for a minimum space requirement.

The torque arm and the bearings must not be prestressed. The roller design makes the AV type ideal for light indexing applications.


Technical Datas

PECI

SPECIFICATION
Model AV30 / AV35 / AV40
Bore diameter 30MM / 35MM / 40MM
Outer diameter 118mm
Thickness 54mm
Torque capacity 1200Nm
Overrunning speed 320r/min
Weight 3.5kg
Package Industrial package
Delivery time 7-10 days
Payment terms TT, L/C, D/P, D/A, Western Union, Paypal


Dimensions and Capacities

AV30 AV35 AV40 Bucket Elevator Backstop Clutch Bearing One Way

Type Size TKN1) Overrunning speed Weight Drag torque
AV dH7 nimax D D2 L 1 L B F bB11 N E f TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
20 265 450 83 42 35 12 40 90 15 35 5 0.8 1.3 18
25 265 450 83 42 35 12 40 90 15 35 5 0.8 1.3 18
30 1200 320 118 60 54 15 40 110 15 35 8 1 3.5 130
35 1200 320 118 60 54 15 40 110 15 35 8 1 3.4 130
40 1200 320 118 60 54 15 40 110 15 35 8 1 3.3 130
45 2150 280 155 90 54 20 80 140 18 47 10 1 5.5 240
50 2150 280 155 90 54 20 80 140 18 47 10 1 5.4 240
55 2150 280 155 90 54 20 80 140 18 47 10 1 5.3 240
60 2150 280 155 90 54 20 80 140 18 47 10 1 5.2 240
70 2150 280 155 90 54 20 80 140 18 47 10 1 5 240
80 2900 200 190 110 64 20 80 155 20 40 10 1.5 8.7 360
90* 7125 150 260 160 90 25 120 220 – – – 3 24.5 360
100* 7125 150 260 160 90 25 120 220 – – – 3 23.5 360
110* 7125 150 260 160 90 25 120 220 – – – 3 22.5 360
120* 11000 130 300 180 110 30 140 260 – – – 3 42 600

Mounting Example

AV30 AV35 AV40 Bucket Elevator Backstop Clutch Bearing One Way
Pictures
AV30 AV35 AV40 Bucket Elevator Backstop Clutch Bearing One Way
