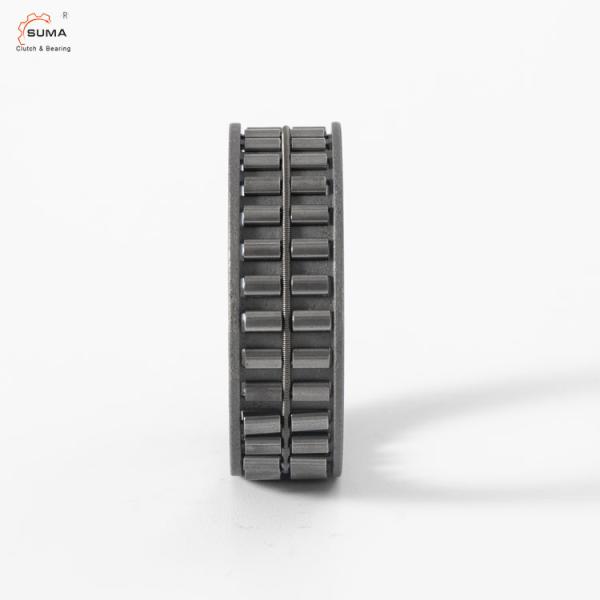

FE463Z 55*63*11mm Cage Rotation One Way Clutch Bearing

Features

1. The FE stated speed and torque ratings are contingent on utilizing specified tolerances, correct installation techniques, and operating temperature and load conditions below the specified maximums.
2. The FE stated RPM value is for the maximum freewheel rotational speed for the sprags, not the shaft or housing. High freewheel rotational speeds can produce centrifugal forces that can cause the sprags to lift off from frictional contact, therefore creating an opportunity for improper engagement and potential slip. The sprag RPM must be below the listed value before engagement occurs. The actual sprag freewheel speed is difficult to determine because the sprags are driven by frictional forces from the race(s) and lubrication. Theoretically there is no maximum rotational speed in the driving direction; the inner race, sprags, and outer race rotate as one unit unaffected by centrifugal forces.
3. The FE stated temperature rating is for an injection molded cage.
4. The maximum temperature rating is 170°C for a steel cage.
5. Effective hardness depth, equivalent to case hardness depth (CHD).

Technical Parameter

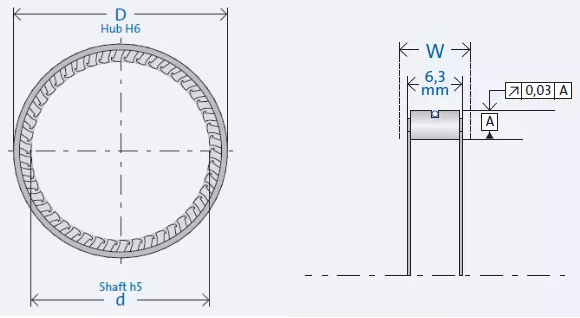

Drawing legend:

d = inner diameter D = outer diameter W = width T = torque n = rotation speed
