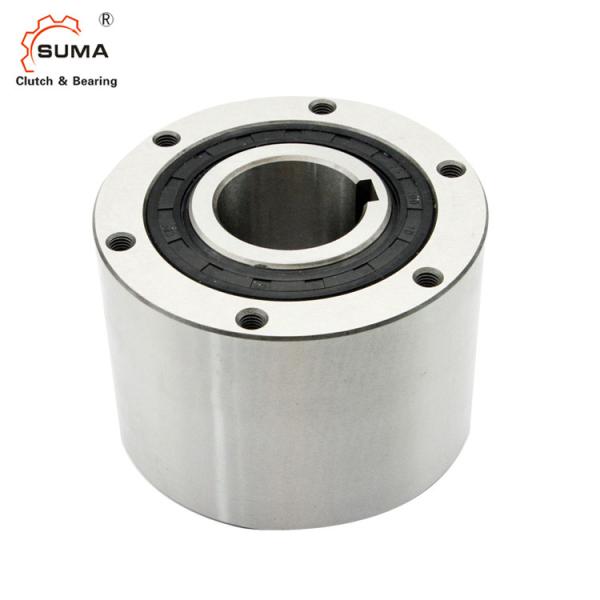

MX22 One Way Sprag Freewheel Cam Clutch Bearing

Brand Name : SUMA

Model Number : MX22

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD100-USD180 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal

Delivery Time : 7-15 Days

Packaging Details : Carton Box / Wooden Box

Product Name : Cam Clutch Bearing MX22

Bearing Supported : YES

Material : Bearing Steel GCr15

Size : 22*95*80mm

Torque capacity : 78.4Nm

Warranty : 1 Year

Package : Carton Box / Wooden Box

Rotation Speed : 1200RPM

Contact Now

MX22 Press Fit 80MM Freewheel 1200RPM Cam Clutch Bearing

When mounting the clutch on a shaft, apply pressure to the clutch inner race end, but never to the outer race.
Proper selection of the Cam Clutch provides accurate indexing performance. A braking device and a backstopping device may also be required for more accurate performance.

The tolerance of the hub bore should be H6 or H7.

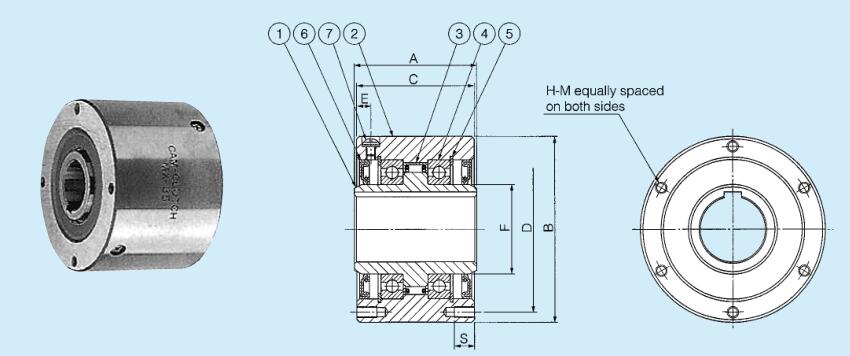

Dimensions and Capacities

MX22 One Way Sprag Freewheel Cam Clutch Bearing

Model Torque
Capacity

Max.

Indexing

 Bore Size A B
(h7)		 C PCD
D		 E F S

Lubrication
Filler PlugSize×

Pitch

 Inertia
Inner
Race		 Drag
Torque		 Oil Weight
Dia. Keyway
(N·m) (cycle/min) (kg·m2) (N·m) (ml) (kg)
MX22 78.4 1200 22 6 × 2.8 80 95 77 80 12 35 16 M6XP1.0 0.00015 0.47 80 3.3
MX35 235 1200 35 10 ×33 90 125 87 110 12 50 16 M6XP1.0 0.000625 1.36 110 6.4
MX50 441 1200 50 14 × 3.8 100 155 97 140 14 70 16 M8XP1.25 0.00275 2.68 190 10.6
MX70 784 1200 70 20 ×4.9 127 200 124 180 15 100 20 M8XP1.25 0.013 5.15 340 21.3

Mounting and Coupling

MX22 One Way Sprag Freewheel Cam Clutch Bearing

Installation and Usage
1. For installation, insert the clutch into the hub bore of a pulley, a gear, or a torque arm and screw the bolts (high tension) into the tapped holes in the end face of the clutch. See illustration on the right.
2. A press fit is required for MX Series clutches for indexing applications, but do not exceed 0.025 mm when press fitting.
3. Adjust the side of the key to fit the keyway tightly, but allow a clearance between the top of key and keyway.

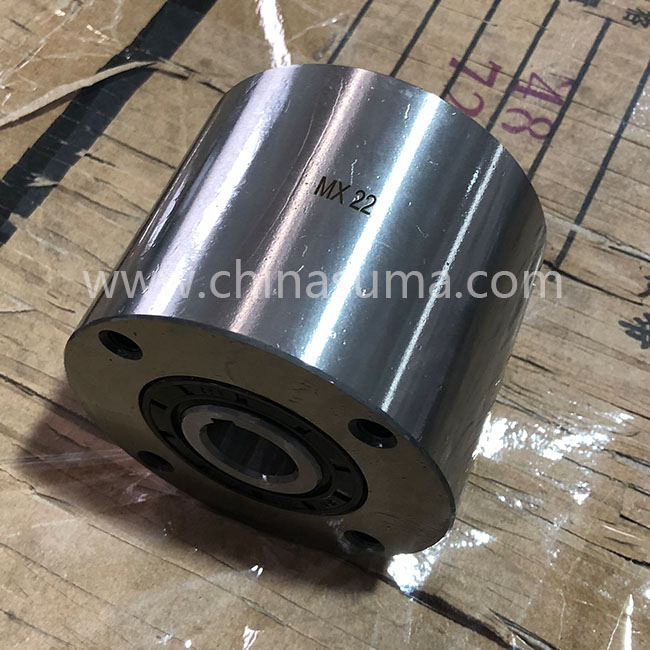

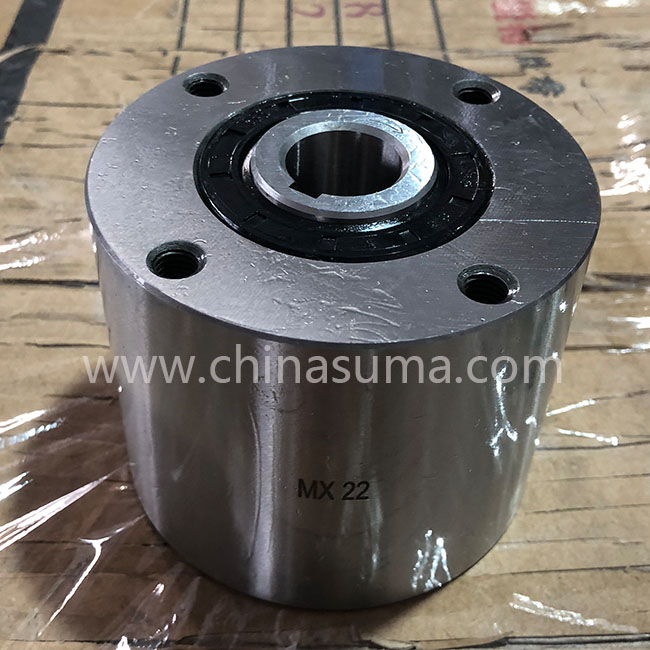

Pictures

MX22 One Way Sprag Freewheel Cam Clutch Bearing

MX22 One Way Sprag Freewheel Cam Clutch Bearing

MX22 One Way Sprag Freewheel Cam Clutch Bearing
