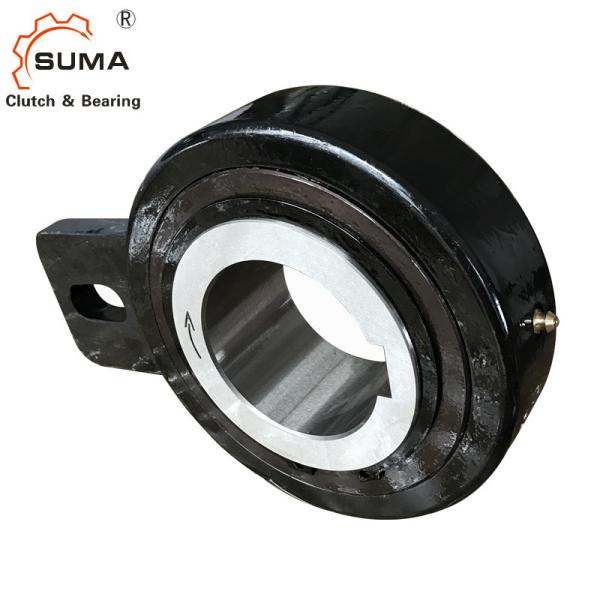

BSEU90-85 Bucket Backstop Clutch Freewheel Roller 1 Way Bearing

Brand Name : SUMA

Model Number : BSEU90-85

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD240-USD285 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 7-10 Days

Packaging Details : Carton Box / Wooden Box

Product Name : Backstop Clutch BSEU90-85

Material : GCr15 Bearing Steel

Torque Capacity : 4700Nm

Rotation Speed : 250RPM

Unit Weight : 10Kg

Size : 85*190*63mm

Warranty : 1 Year

OEM : Accept

Contact Now

BSEU90-85 Bucket Backstop Clutch Freewheel Roller 1 Way Bearing

Features

BSEU series Cam Clutch was developed as European style Backstopping Cam Clutch which has easy usage. It has Cam & Roller construction that the roller works as a bearing same as the small size BS series Cam Clutch.

The outer race has special shape which was combined the torque arm, so only stopping the rotation is required.

You can select the correct model from various bore size from 20 mm to 90 mm in each 5 mm. Backstopping for the country elevator or the foods conveying conveyor which is used in the factory is the recommendation.

The recommends BS series Cam Clutch in the very dusty environment condition or the inclined conveyor and the bucket elevator which are used in outside location.

Dimensions and Capacities

Item BSEU90-85
Material GCr15
Bore dia. 85 mm
Outer dia. 190 mm
Width 63 mm
Torque capacity 4700 N.m
Overrunning limiting speed 250 r/min
Weight 9.265-10.046 kg
Package Carton box, wooden box or as your requirements

Model Bore Size Torque
Capacity
(N·m)		 Max.
Overrunning
(r/min)
Inner Race		 D D2 L1 L B F b N E J W. MIN W. Max
Dia
( H7)		 Keyway
BSEU25-20 20 6×2.8 216  500 83 42 35 12 40 90 15 35 5 1 0.999 0.948
BSEU25-25 25 8×3.3 216  500 83 42 35 12 40 90 15 35 5 1
BSEU40-20 20 6×2.8 1,440  450 118 60 55 15 40 110 15 35 8 1.5 3.781 3.363
BSEU40-25 25 8×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-30 30 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-35 35 10×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-40 40 12× 3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU70-45 45 14×3.8 3,140  350 165 90 59 20 80 140 18 35 10 1.5 7.607 6.541
BSEU70-50 50 3,140  350 165 90 59 20 80 140 18 35 10 1.5
BSEU70-55 55 16×4.3 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-60 60 18×4.4 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-65 65 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-70 70 20×4.9 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU90-75 75 4,700  250 190 120 63 20 80 165 20 40 15 2 10.046 9.265
BSEU90-80 80 22×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90-85 85 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90-90 90 25×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90-85 Bucket Backstop Clutch Freewheel Roller 1 Way Bearing
Mounting and Coupling
BSEU90-85 Bucket Backstop Clutch Freewheel Roller 1 Way Bearing
Pictures
BSEU90-85 Bucket Backstop Clutch Freewheel Roller 1 Way Bearing
BSEU90-85 Bucket Backstop Clutch Freewheel Roller 1 Way Bearing
