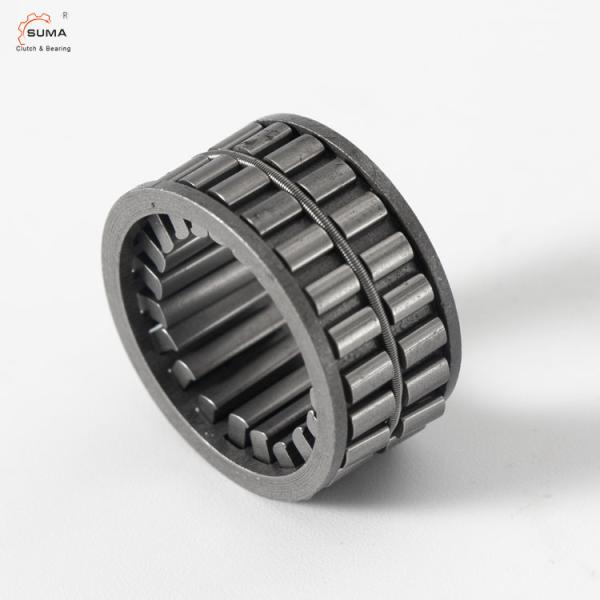

FE459Z Sprag Clutch Bearing One Way Clutch for Bicycle

Name: FE459Z Sprag Clutch Bearing One Way Clutch for Bicycle
Brand: SUMA
Price: 6 USD

Quality FE459Z Sprag Clutch Bearing One Way Clutch for Bicycle wholesale

Brand Name : SUMA

Model Number : FE459Z

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD6-USD8 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 1-2 Days

Packaging Details : Carton Box

Product Name : Sprag Clutch Bearing FE459Z

Material : GCr15 Bearing Steel

Torque Capacity : 353Nm

Rotation Speed : 3000RPM

Unit Weight : 0.03KG

Size : 51*59*12mm

OEM : Accept

Contact Now

FE459Z Sprag Clutch Bearing

Features

The sprags are evenly spaced around the circumference of the insert element cage. The insert element cage does not come in contact with the inner or outer races; it remains absolutely loadfree under any application.

Sprag type freewheel clutches with a plastic cage in their standard design are also available as a special design with a steel cage on request.

Operating temperature:

Steel cage: max. 170 Degree

Plastic cage: max. 140 Degree

Technical Datas

Model	FE459Z
Torque (Nm)	353
Overrunning Speed (rpm)	3000
Inner Race Size (mm)	51
Outer Race Size (mm)	59
Thickness (mm)	11
Weight (Kg)	0.03

Dimensions and Capacities

Drawing legend:

d = inner diameter D = outer diameter W = width T = torque n = rotation speed

Designation	d [mm]	D [mm]	W [mm]	Tnom [Nm]	nmax [rpm]	Weight [kg]	Item no.
FE 412 Z	4	12	12	4	27,000	0.003	300393
FE 416 Z	8	16	12	16	19,200	0.006	300400
FE 420 Z	12	20	12	35	12,500	0.007	306041
FE 422 Z	14	22	12	53	10,100	0.008	300405
FE 423 Z	15	23	12	62	9,200	0.009	300411
FE 425 Z	17	25	12	72	8,100	0.011	300415
FE 427 Z	19	27	12	83	7,400	0.013	300422
FE 428 Z	20	28	12	93	7,500	0.013	300430
FE 430 Z	22	30	12	107	6,300	0.014	300435
FE 432 Z	24	32	12	117	5,900	0.016	300439
FE 433 Z	25	33	12	128	6,000	0.016	300445
FE 435 Z	27	35	12	143	5,100	0.017	300448
FE 437 Z	29	37	12	154	4,800	0.018	300455
FE 438 Z	30	38	12	166	4,900	0.019	300460
FE 442 Z	34	42	12	198	4,400	0.018	300463
FE 443 Z	35	43	12	207	4,300	0.022	300469
FE 448 Z	40	48	12	248	4,200	0.024	300478
FE 453 Z	45	53	12	293	3,400	0.022	300482
FE 455 Z	47	55	12	313	3,300	0.026	300487
FE 458 Z	50	58	12	344	3,100	0.029	300489
FE 459 Z	51	59	12	353	3,000	0.030	300494
FE 463 Z	55	63	12	393	2,900	0.032	300497
FE 468 Z	60	68	12	444	2,700	0.034	300501
FE 470 Z	62	70	12	465	2,600	0.035	300505
FE 473 Z	65	73	12	495	2,500	0.037	300508
FE 478 Z	70	78	12	548	2,600	0.039	300511
FE488Z	80	88	12	657	2,100	0.045	300514
FE 508 Z	100	108	12	889	1,700	0.055	300519
FE 528 Z	120	128	12	1,127	1,300	0.066	300522
FE 648 Z	240	248	12	2,673	800	0.131	300524

Designation	d [mm]	D [mm]	W [mm]	Tnom [Nm]	nmax [rpm]	Weight [kg]	Item no.
FE 410 Z2	2	10	7	0,6	52,600	0.001	300390
FE 412 Z2	4	12	7	2,5	40,900	0.002	300394
FE 413 Z2	5	13	7	4	34,900	0.003	300395
FE 414 Z2	6	14	7	6	31,200	0.003	300396
FE 416 Z2	8	16	7	10	27,200	0.004	300399
FE 418 Z2	10	18	7	16	18,900	0.005	300401
FE 422 Z2	14	22	7	30	13,200	0.006	300406
FE 423 Z2	15	23	7	40	13,200	0.006	300410
FE 425 Z2	17	25	7	43	10,600	0.007	300416
FE 428 Z2	20	28	7	55	9,700	0.008	300431
FE 433 Z2	25	33	7	78	7,700	o.oio	300446
FE 437 Z2	29	37	7	97	6,100	o.oii	300457
FE 438 Z2	30	38	7	105	6,400	o.oii	300461
FE 442 Z2	34	42	7	125	5,400	0.012	300465
FE 443 Z2	35	43	7	131	5,600	0.013	300472
FE 448 Z2	40	48	7	156	5,500	0.014	300477
FE 453 Z2	45	53	7	185	4,400	0.016	300484
FE 458 Z2	50	58	7	216	4,400	0.017	300490
FE 463 Z2	55	63	7	246	3,700	0.019	300498
FE 468 Z2	60	68	7	277	3,500	0.020	300502

Pictures

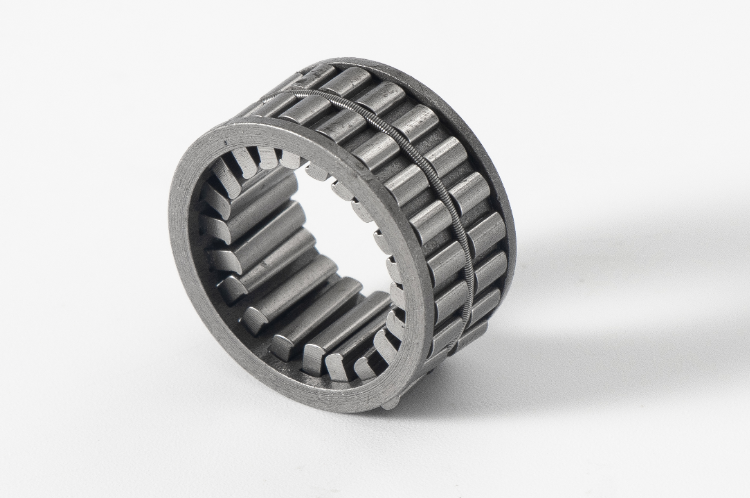

FE459Z Sprag Clutch Bearing One Way Clutch for Bicycle
